6404003
sport
Subaru EG33
B-6cyl 3.3L 24v QOHC (DTH/DTH)
intake
exhaust

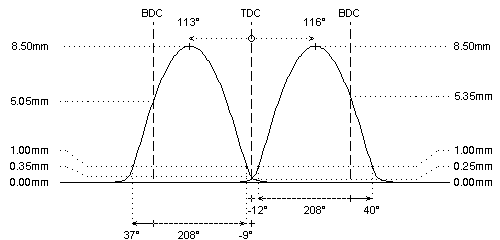

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 258°
258°
duration @ 1.0mm
: 208°
208°
valve lift
: 8.50mm
8.50mm
cam lift
:
lobe angle
: 116°
113°
timing @ 1.0mm
: -12° / 40°
37° / -9°
valve lift @ TDC
: 0.25mm
0.35mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
:
O.E.M.
:
O.E.M.
fitted load / length
: 20kg @ 29.0mm
: 20kg @ 29.0mm
max. load / lift
: 50kg @ 8.5mm
: 50kg @ 8.5mm
REMARKS :
REMARKS :
#
steel billet camshafts for use in EG33 engine:
- exhaust camshafts driven by
belt
- intake camshafts driven by
internal meshed gear
MORE PROFILE OPTIONS ON REQUEST
