5500321
hot street - dirt track
Renault C1J.782 / 784 / 788 R5 GT turbo, R9 turbo, R11 turbo
I-4cyl 1.4L 8v OHV (FT/FT)
Save to PDF
intake
exhaust

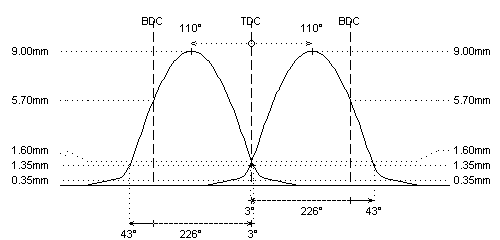

camshaft data:
lash ramp
: 0.35mm
0.35mm
duration @ 0.1mm
: 275°
275°
duration @ 1.0mm
: 226°
226°
valve lift
: 9.00mm
9.00mm
cam lift
: 9.00mm
9.00mm
lobe angle
: 110°
110°
timing @ 1.0mm
: 3° / 43°
43° / 3°
valve lift @ TDC
: 1.60mm
1.60mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 25kg @ 31.0mm
: 22kg @ 32.0mm
max. load / lift
: 62kg @ 9.0mm
: 60kg @ 9.0mm
REMARKS :
REMARKS :
#
- cam lobe sequence: EI-IE-EI-IE
- total length: 384mm
- single chain
- journal diameters: 37.94 - 37.94 - 37.94 - 37.94mm
- available in chilled cast iron only
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
