1323703
sport
Citroën TU5JP4S 125hp
I-4cyl 1.6L 16v DOHC (DTH/DTH)
intake
exhaust

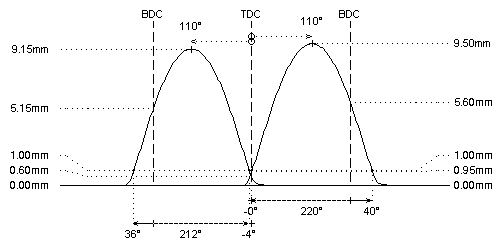

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 248°
240°
duration @ 1.0mm
: 220°
212°
valve lift
: 9.50mm
9.15mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: -0° / 40°
36° / -4°
valve lift @ TDC
: 0.95mm
0.60mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 23kg @ 34.0mm
: 23kg @ 34.0mm
max. load / lift
: 60kg @ 9.5mm
: 60kg @ 9.5mm
REMARKS :
REMARKS :
#
ECU reprogramming required
